Material : Carbon Steel, CS ASTM A234 WBP, A420, A106, A 53 Gr.B.
Place of Origin : China / Japan
Shape : Equal

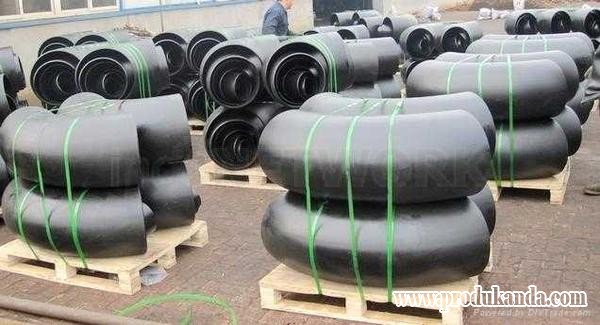

Product:
Elbow, Tee straight & reducing, Cap, Cross Tee. Etc
Packaging Detail : Seaworth plywood crate fumigation woode pallet
Specifications :
butt-welding pipe fittings
1/ 2 ” – 24 ” Seamless
4 ” – 48 ” Seam welding
30, 45, 90, 180 degree
PIPE FITTING
Size range: seamless 1/ 2 ” to 24 ”
seam weldding 4 ” to 48 ”
Material : Carbon steel ASTM A234 wpb, wpc; A106, A420
Standard: ANSIB16.9, ASME B16.28; DIN 2605, DIN 2615, DIN2616,
DIN2617; GOST 17375; GOST 17378; JIS2311
Wall thickness: 2MM—-25MM
SCH5, SCH10S, SCH10, SCH20, SCH30, STD, SCH40, XS, SCH60, SCH80, SCH100, SCH120, SCH140, SCH160, XXS, SGP, LG.
Products :
Elbow: 45 deg, 90 deg, 180 deg, long redius, short redius
Tee: equal, reducing
Reducer: concentric, eccentric, Cap, Cross
Coating : Black paint, rust-proof oil, transparent paint, hot galvanized,
cold galvanized.
Dimensions Butt Weld Elbows 45°-90° LR & 3D acc. to ASME B16.9
| NPS | O.D. D |
90 degrees Long Radius Center-to-End A |
45 degrees Long Radius Center-to-End B |
90 degrees 3D Center-to-End A |
45 degrees 3D Center-to-End B |
| 1/2 | 21.3 | 38 | 16 | … | … |
| 3/4 | 26.7 | 38 | 19 | 57 | 24 |
| 1 | 33.4 | 38 | 22 | 76 | 31 |
| 1¼ | 42.2 | 48 | 25 | 95 | 39 |
| 1½ | 48.3 | 57 | 29 | 114 | 47 |
| 2 | 60.3 | 76 | 35 | 152 | 63 |
| 2½ | 73 | 95 | 44 | 190 | 79 |
| 3 | 88.9 | 114 | 51 | 229 | 95 |
| 3½ | 101.6 | 133 | 57 | 267 | 111 |
| NPS | O.D. D |
90 degrees Long Radius Center-to-End A |
45 degrees Long Radius Center-to-End B |
90 degrees 3D Center-to-End A |
45 degrees 3D Center-to-End B |
And many more like 180 deg, long redius, short redius
Tee: equal, reducing
Reducer: concentric, eccentric, Cap, Cross
